OB TRUCKS

CVP has two OB Trucks in its fleet ready and available for rental for your next broadcast.

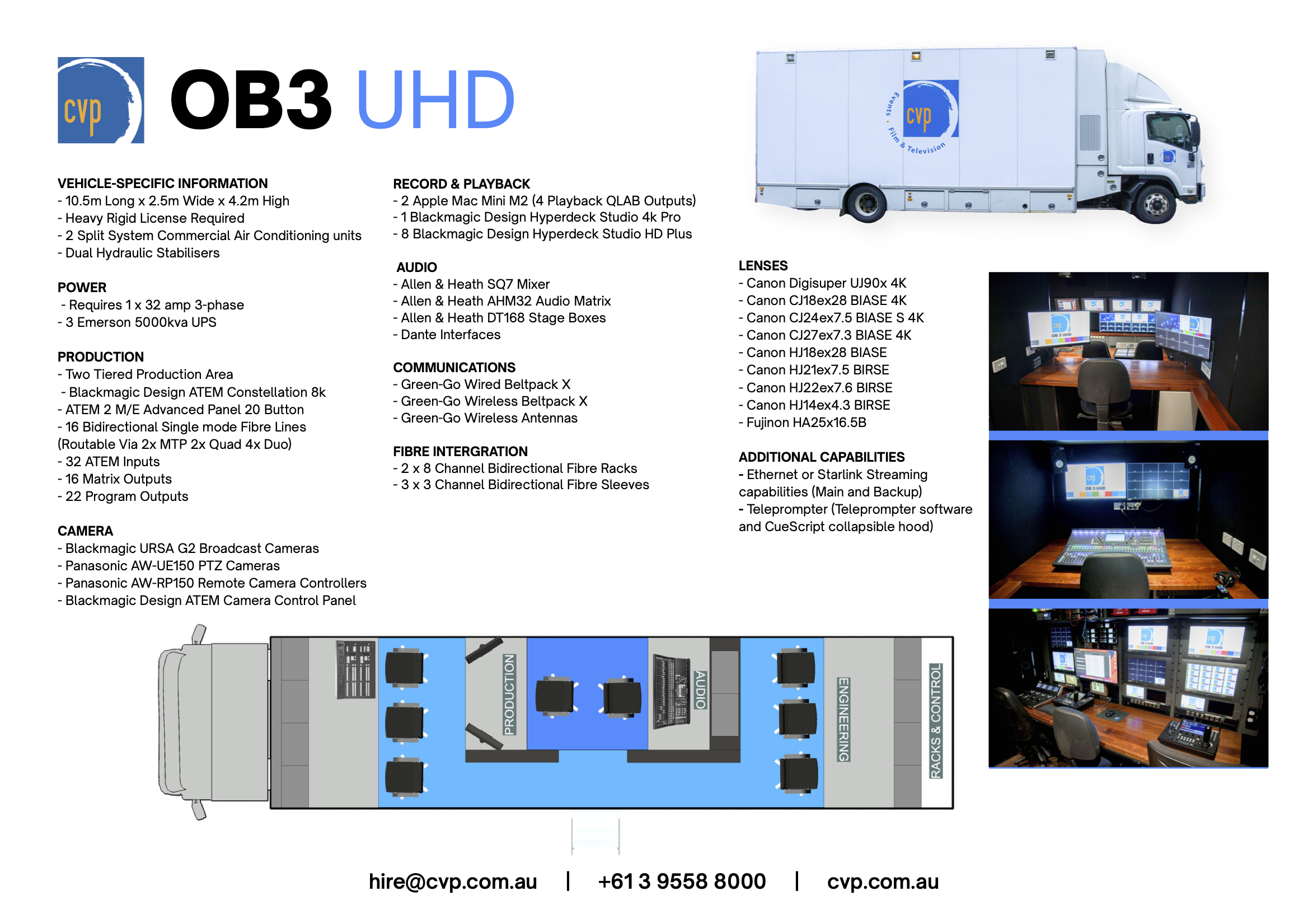

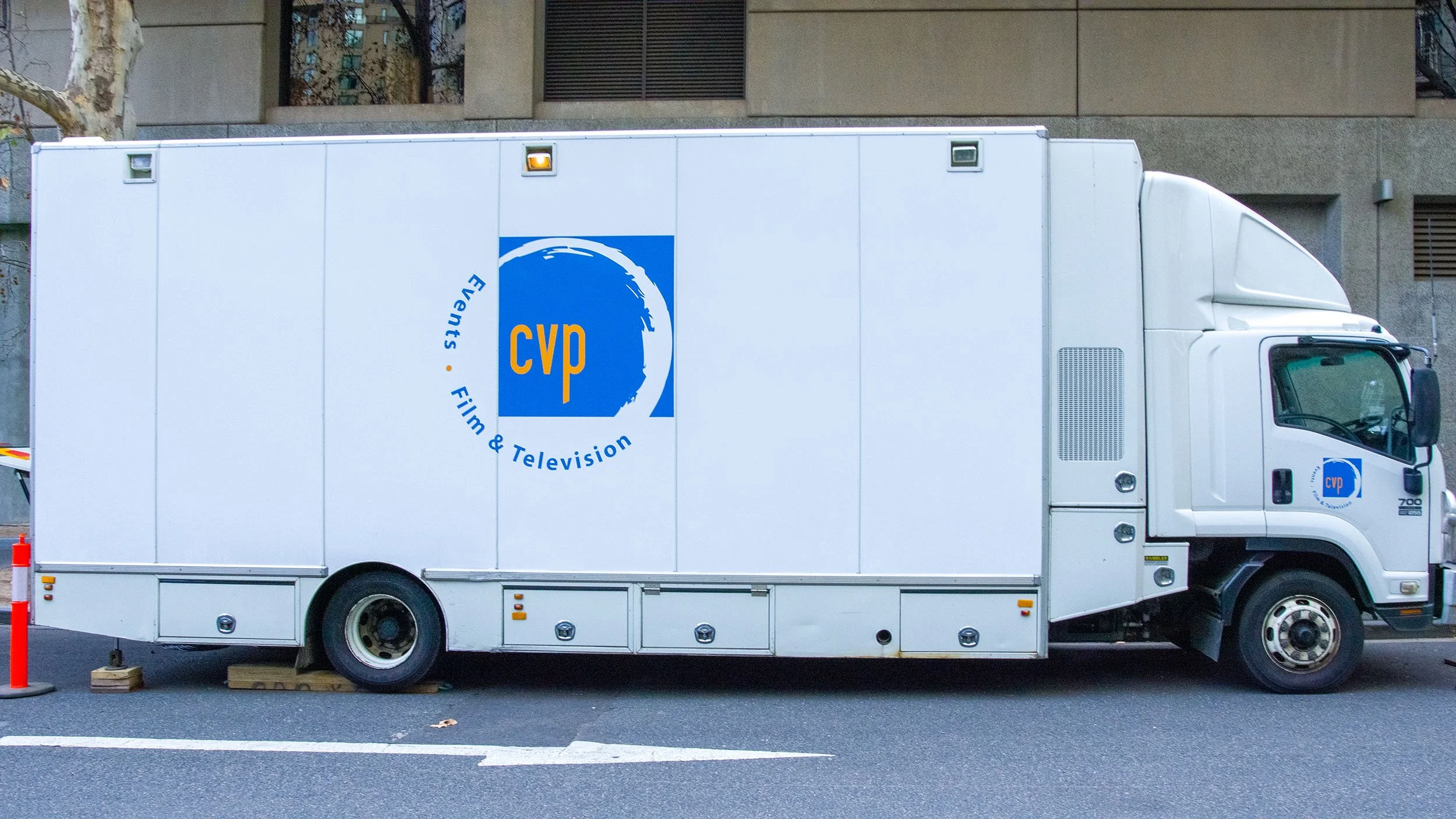

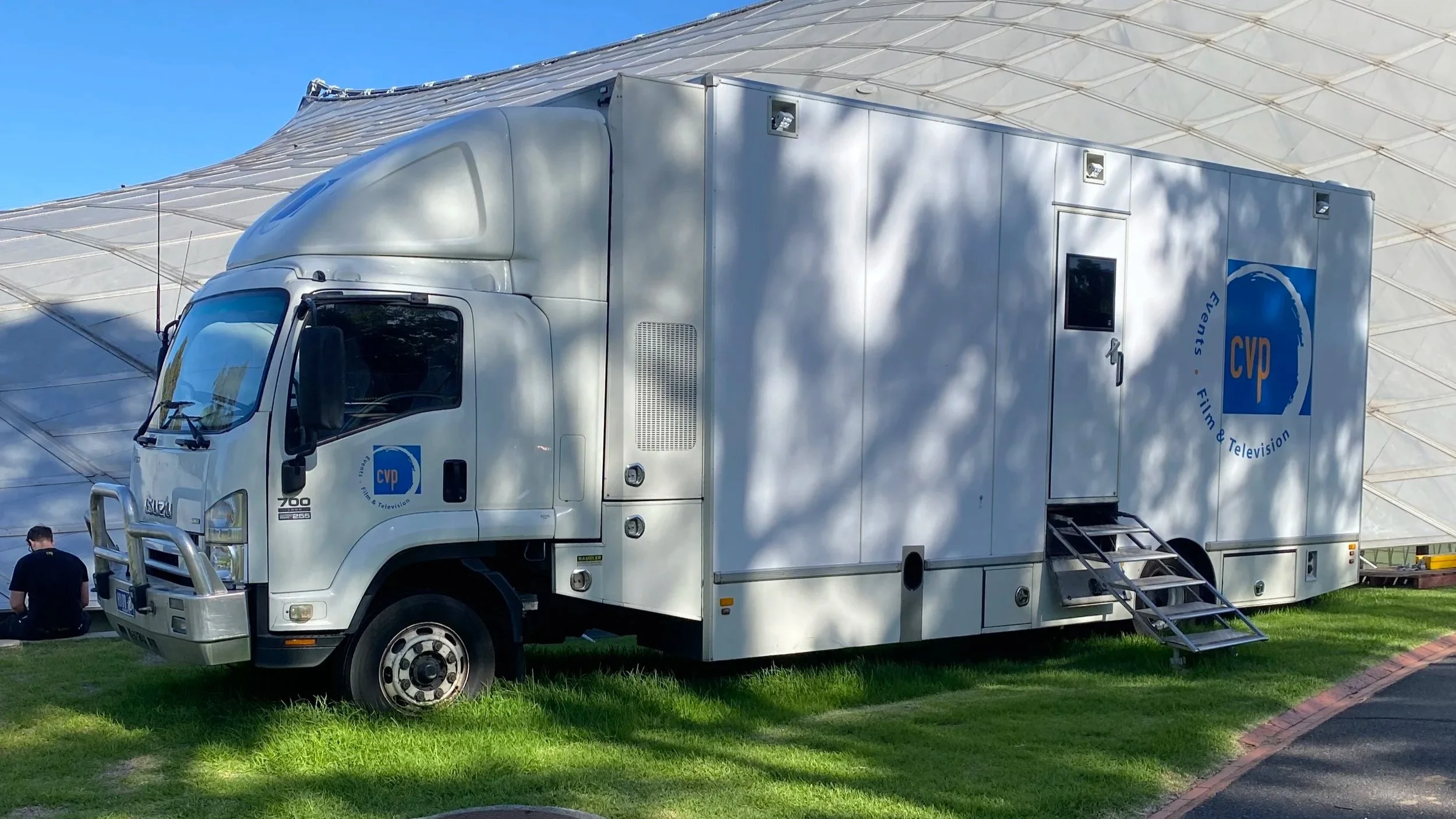

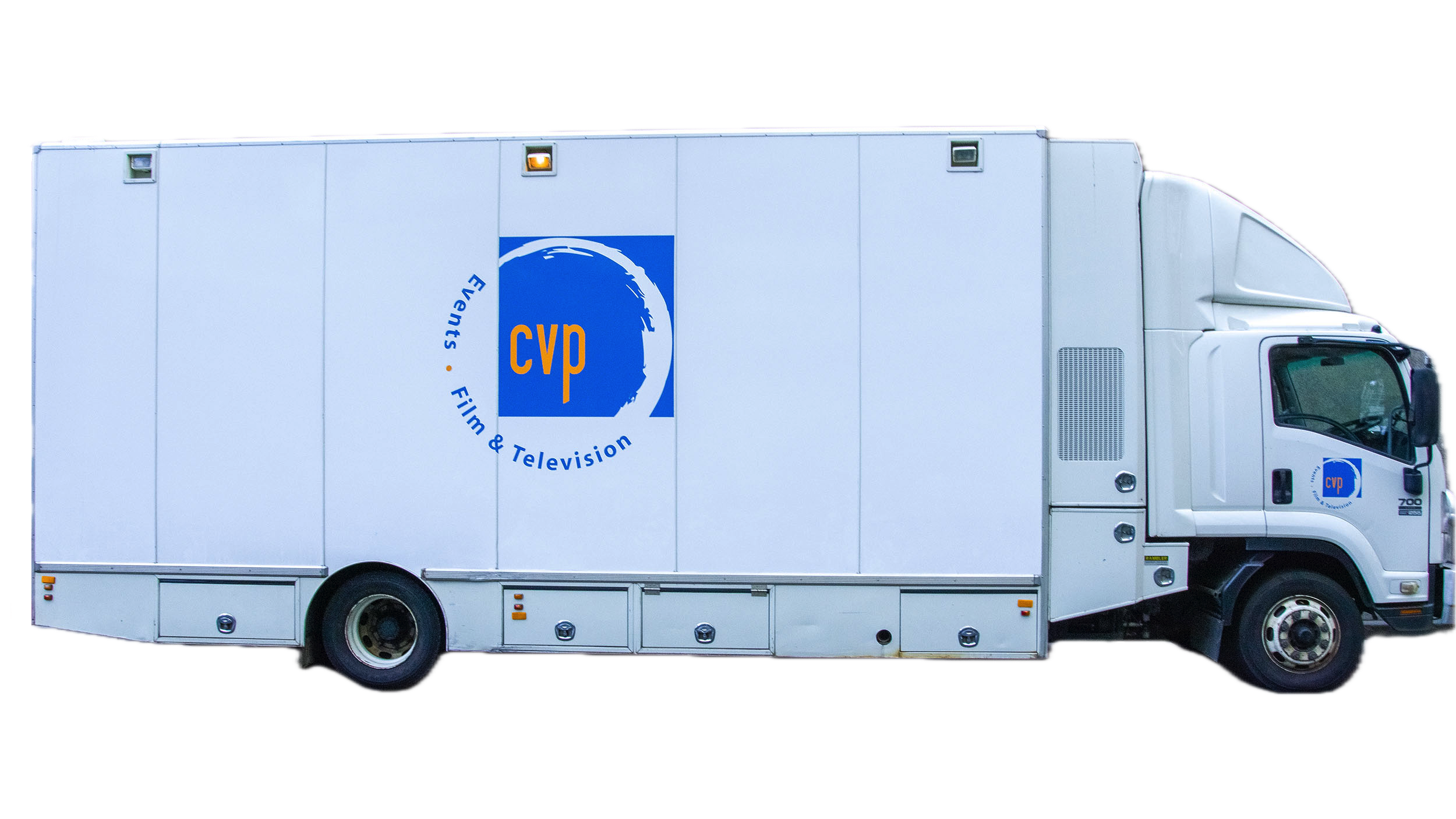

OB3 UHD

Professional 4K outside broadcast, built for modern productions.

Whether you're covering live sport, concerts, festivals or corporate events, OB3 provides the production power and flexibility to deliver broadcast-quality results wherever your project takes you.

  • - 10.5m Long x 2.5m Wide x 4.2m High

    - Heavy Rigid License Required

    - 2 Split System Commercial Air Conditioning units

    - Dual Hydraulic Stabilisers

    - Requires 1 x 32 amp 3-phase

    - 3 Emerson 5000kva UPS

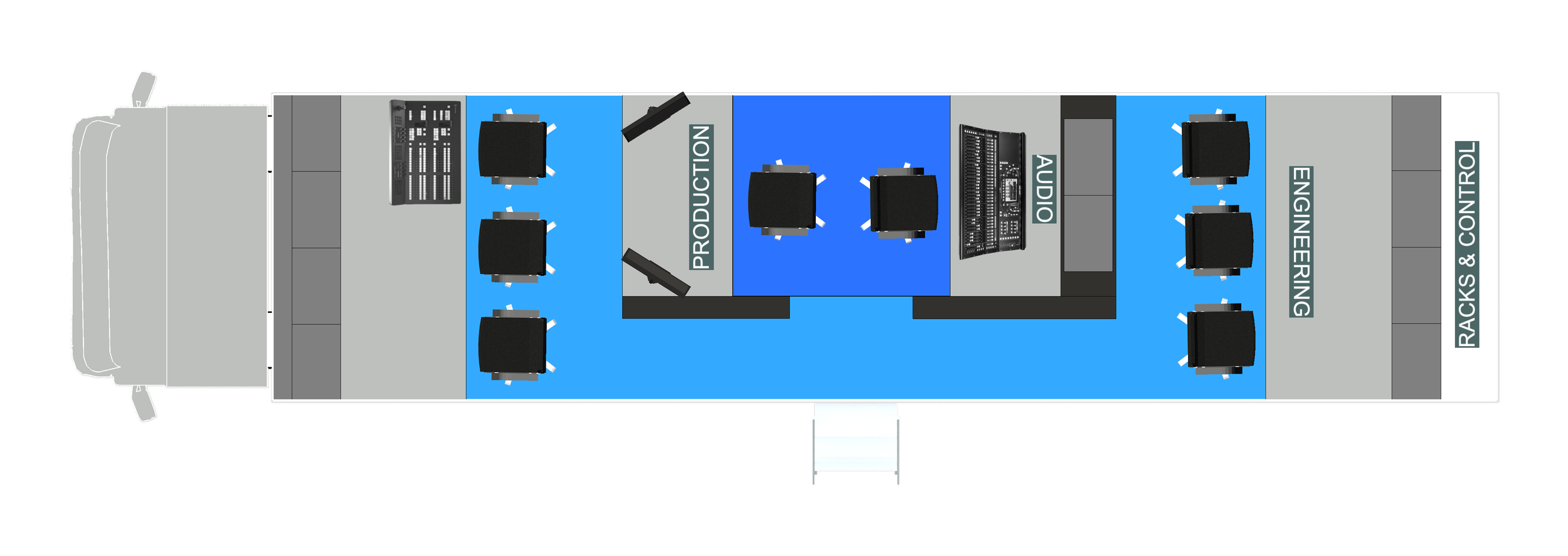

  • - Two Tiered Production Area

    - Blackmagic Design ATEM Constellation 8k

    - ATEM 2 M/E Advanced Panel 20 Button

    - 16 Bidirectional Single mode Fibre Lines

    (Routable Via 2x MTP 2x Quad 4x Duo)

    - 32 ATEM Inputs

    - 16 Matrix Outputs

    - 22 Program Outputs

  • - 2 Apple Mac Mini M2 (4 Playback QLAB Outputs)

    - 1 Blackmagic Design Hyperdeck Studio 4k Pro

    - 8 Blackmagic Design Hyperdeck Studio HD Plus

  • - Allen & Heath SQ7 Mixer

    - Allen & Heath AHM32 Audio Matrix

    - Allen & Heath DT168 Stage Boxes

    - Dante Interfaces

  • - Green-Go Wired Beltpack X

    - Green-Go Wireless Beltpack X

    - Green-Go Wireless Antennas

  • - 2 x 8 Channel Bidirectional Fibre Racks

    - 3 x 3 Channel Bidirectional Fibre Sleeves

OB2 UHD

Professional 4K outside broadcast, designed for flexibility.

Offering many of the same broadcast capabilities as our flagship OB3, OB2 delivers exceptional production performance in a more compact platform. Ideal for venues with tighter access, regional events and productions where agility is just as important as capability.

  • - 10.5m Long x 2.5m Wide x 4.2m High

    - Standard License Required

    - Split System Commercial Air Conditioning unit

    - Requires 1 x 32 amp 3-phase

  • - Single Tiered Production Area

    - Blackmagic Design ATEM Constellation 8k

    - ATEM 2 M/E Advanced Panel 20 Button

    - 16 Bidirectional Single mode Fibre Lines

    (Routable Via 2x MTP 2x Quad 4x Duo)

    - 32 ATEM Inputs

    - 16 Matrix Outputs

    - 22 Program Outputs

  • - 2 Apple Mac Mini M2 (4 Playback QLAB Outputs)

    - 1 Blackmagic Design Hyperdeck Studio 4k Pro

    - 8 Blackmagic Design Hyperdeck Studio HD Plus

  • - Green-Go Wired Beltpack X

    - Green-Go Wireless Beltpack X

    - Green-Go Wireless Antennas

  • - 2 x 8 Channel Bidirectional Fibre Racks

    - 3 x 3 Channel Bidirectional Fibre Sleeves
